Ductile Iron

Orca’s ductile iron range is designed to perform in the most punishing conditions. Ideal for heavy duty applications with ductile iron edged polymer concrete channels and ductile iron grates that support up to Class D loads.

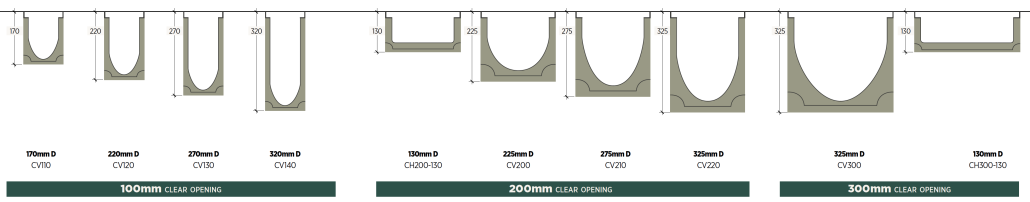

Available in two grate profiles, in 100mm, 200mm and 300mm CV channels or in the shallow CH profile for locations with depth restrictions. The ductile iron grates range delivers a P5 slip rating and is resistant to weathering, acids and alkalis, is frost proof and non-flammable.

This tough channel system features Orca’s heelguard attribute, ensuring pedestrians and mobility aids can travel comfortably over the grating surface. Ideal for heavy duty industrial areas, highways, petrol stations, airports, ports, truck stops and any installation that requires high performing drainage systems.

Manufactured to Australian quality standards our ductile iron grates work with Orca’s drainage and electrical channels and pits range.

• AS3996:2019 Access Covers and Grates
• AS4586:2013 Slip Resistance Classification for New Pedestrian Surfaces
• AS1428.1 Design for Access and Mobility

Grates: Ductile Iron

Polymer Channels
