Slip Resistance AS4586
The Australian Standard covering Slip Resistance Classification (AS4586) was updated in 2013.
AS 4586:2013 sets out methods for classifying the slip resistance of new pedestrian surface materials. The accompanying handbook, SA HB 198:2014, provides guidance on selecting slip resistance classifications for different applications.
Relevant test methods include:
- Wet Pendulum Test (P Rating): assesses slip resistance under wet conditions.
- Wet-Barefoot Inclining Platform Test (A, B and C Ratings): assesses surfaces intended for wet barefoot use.
- Oil-Wet Inclining Platform Test (R Rating): assesses slip resistance under oil-wet conditions.
Mascot Engineering commissions independent wet pendulum testing of popular access covers and grating by NATA-accredited laboratories under AS 4586:2013.
The table below identifies the P classification achieved and the rubber slider used during testing. AS 4586 provides classifications for both Slider 96 and Slider 55, with different classification thresholds for each. Results should be read together with the nominated slider and the relevant test report.
When selecting a product, please confirm that its classification and test slider meet your project specification. Our team can provide test reports to assist your designer, specifier or certifier in assessing suitability.

Table 3B as recommended in SA HB 198:2014.

For further information on slip resistance, see AS4586:2013 and SA HB 198:2014.
Popular Mascot Engineering Products and their P Rating
| Product | P Rating | Test Slider |
|---|---|---|
| Ductile Iron Grate & Frame (DD Range) | P5 | Slider 96 |
| GMS Longitudinal Grate (DD Range) | P3 | Slider 96 |
| Ductile Iron Solid Top Cover & Frame (ST Range) | P4 | Slider 96 |
| GMS Checkerplate Covers | P3** | Slider 96 |
| GMS Checkerplate Covers | P2** | Slider 55 |
| Mascot GRC Covers | P5 | Slider 96 |
| Stainless Steel Grating (HM3) | P5*** | Slider 96 |
| Wavedrain Ductile Iron Grating (Technodrain Range) | P4 | Slider 55 |
| Evomax Ductile Iron Grating (Technodrain Range) | P5 | Slider 55 |
| Magnum Ductile Iron Grating (Technodrain Range) | P5 | Slider 55 |
| GMS Heelproof Grate (Mascot Pit HP Range) | P5 | Slider 96 |
| Ductile Iron Grate & Frame (CIG & TG Range) | P5 | Slider 55 |
| Griptech Grating (OrcaDrain Range) | P5* | Slider 55 |
| Griptech Grating (Grate & Frame Range) | P5* | Slider 55 |
| Griptech Platforms & Walkways | P5* | Slider 55 |
* Griptech® grating achieved P5 using Slider 55 when tested perpendicular to the top bars in accordance with AS 4586:2013. Additional testing at approximately 20° to the top bars also achieved P5. While this supplementary test falls outside strict accordance with the Standard because it was not in the direction of least slip resistance, it demonstrates Griptech’s slip resistance at another angle of travel. This highlights a distinctive benefit of the Griptech design for platform grating, walkways and platforms, as well as traditional drainage grating applications. Full test reports are available on request.
** The slip-resistance classification of GMS Checkerplate may vary between P2 and P3 depending on the supplying steel mill and individual production batch. The same GMS checkerplate samples achieved P3 using Slider 96 and P2 using Slider 55. Classifications relate to the samples and slider tested. Material and production batch variations may also affect results. Please discuss your project’s required classification and test slider with us when ordering.

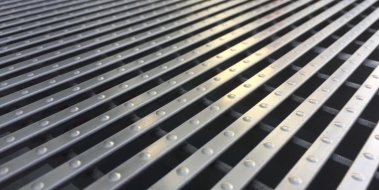

*** Stainless Steel HM3 grating has also achieved R11 when tested parallel to the grating wires and R12 when tested perpendicular to the wires under the AS 4586:2013 oil-wet inclining platform test. It also achieved Class C under the wet-barefoot inclining platform test. These are separate test classifications and are not direct equivalents of the P rating. Full test reports are available on request.
NOTE: The information and slip-resistance classifications shown are correct at the time of publication and relate to the samples tested using the nominated slider. All listed products have been independently tested in accordance with AS 4586. The additional Griptech test at approximately 20° to the top bars is supplementary, as explained above. Results may vary between production batches due to normal material and manufacturing variations. Products will be independently retested following any significant change to design, material or manufacturing process that may affect slip resistance, and the published classification updated where required.
