Galvanised Steel
Orca’s galvanized steel range of grates deliver predictable performance and long-life corrosion protection across a range of applications.
Ideal for internal drainage requirements or pedestrian access areas, parking garages, shopping centres, light industrial installations or commercial projects.
Available in three profiles with our integrated galvanized steel edge rails, including our GriptechTM design with Orca’s patented anti-slip system. The range features Orca’s heelguard attribute to prevent trip hazards, ensuring pedestrians and mobility aids can travel comfortably over the grating surface.
Load rated to Class D, with a P5 slip rating, these grates are available with 100mm, 200mm and 300mm GV channels or in a shallow GH profile for locations with depth restrictions.
Manufactured to Australian quality standards our galvanized steel grates work with Orca’s drainage and electrical channels and pits range.
Grates: Galvanised Steel
| Description | Suits Drain Range | Class Load | Width | Length | Product Code |
|---|---|---|---|---|---|
| Black Ductile Heelguard Grate | 100 Clear Opening | D | 100 | 500 | G101 |
| Glavanised Ductile Heelguard Grate | 100 Clear Opening | D | 100 | 500 | G102 |
| Galvanised Griptech Heelguard Grate | 100 Clear Opening | B | 100 | 1000 | G105 |
| Black Ductile Heelguard | 200 Clear Opening | D | 200 | 500 | G201 |
| Galvanised Ductile Heelguard Grate | 200 Clear Opening | D | 200 | 500 | G202 |
| Galvanised Griptech Heelguard Grate | 200 Clear Opening | B | 200 | 1000 | G205 |
| Black Ductile Heelguard Grate | 300 Clear Opening | D | 300 | 500 | G301 |
| Galvanised Ductile Heelguard Grate | 300 Clear Opening | D | 300 | 500 | G302 |
| Glavanised Griptech Heelguard Grate | 300 Clear Opening | B | 300 | 1000 | G305 |
Polymer Channels
| Description | Internal L | Internal W | Overall Depth | Class Load | Weight | Product Code |
|---|---|---|---|---|---|---|

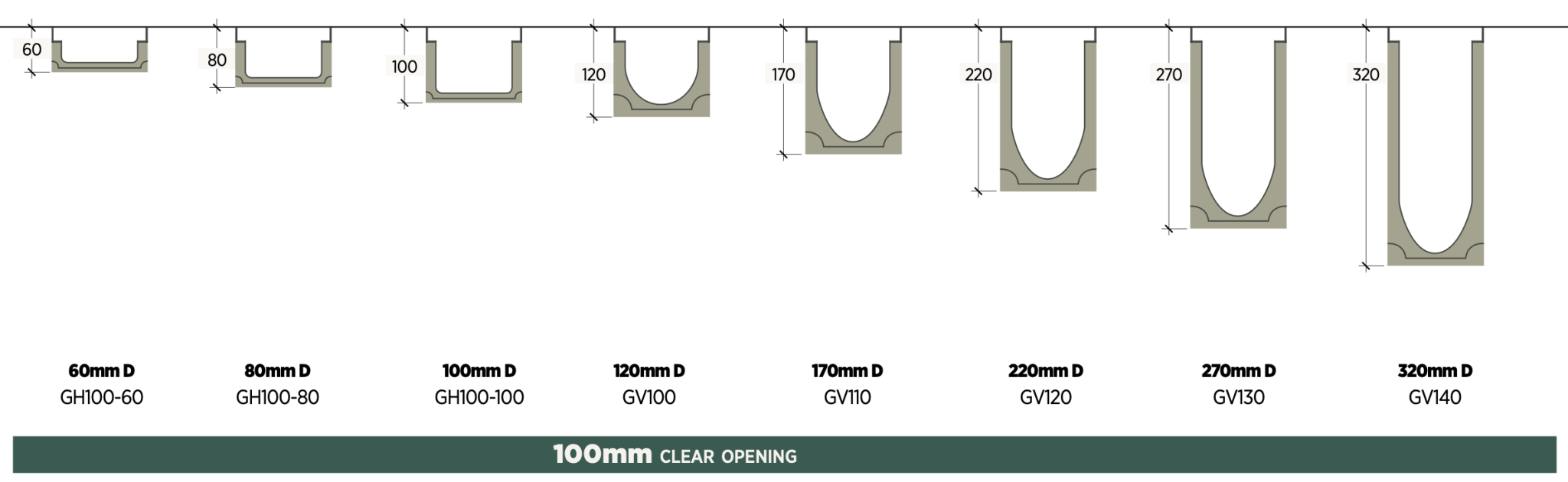

| Polymer Channel Galvanised Steel | 1000mm | 100mm | 60mm | D240 | 6.5kg | GH100-60 |
| Polymer Channel Galvanised Steel | 1000mm | 100mm | 80mm | D240 | 9kg | GH100-80 |
| Polymer Channel Galvanised Steel | 1000mm | 100mm | 100mm | D240 | 12.5gh | GH100-100 |
| Polymer Channel Galvanised Steel | 1000mm | 100mm | 1200 | D240 | 13kg | GV100 |
| Polymer Channel Galvanised Steel | 1000mm | 100mm | 170mm | D240 | 17kg | GV110 |
| Polymer Channel Galvanised Steel | 1000mm | 100mm | 220mm | D240 | 19kg | GV120 |
| Polymer Channel Galvanised Steel | 1000mm | 100mm | 270mm | D240 | 21kg | GV130 |
| Polymer Channel Galvanised Steel | 1000mm | 100mm | 320mm | D240 | 24kg | GV140 |
| Polymer Channel Galvanised Steel | 1000mm | 100mm | 130mm | D240 | 27kg | GV1200-130 |

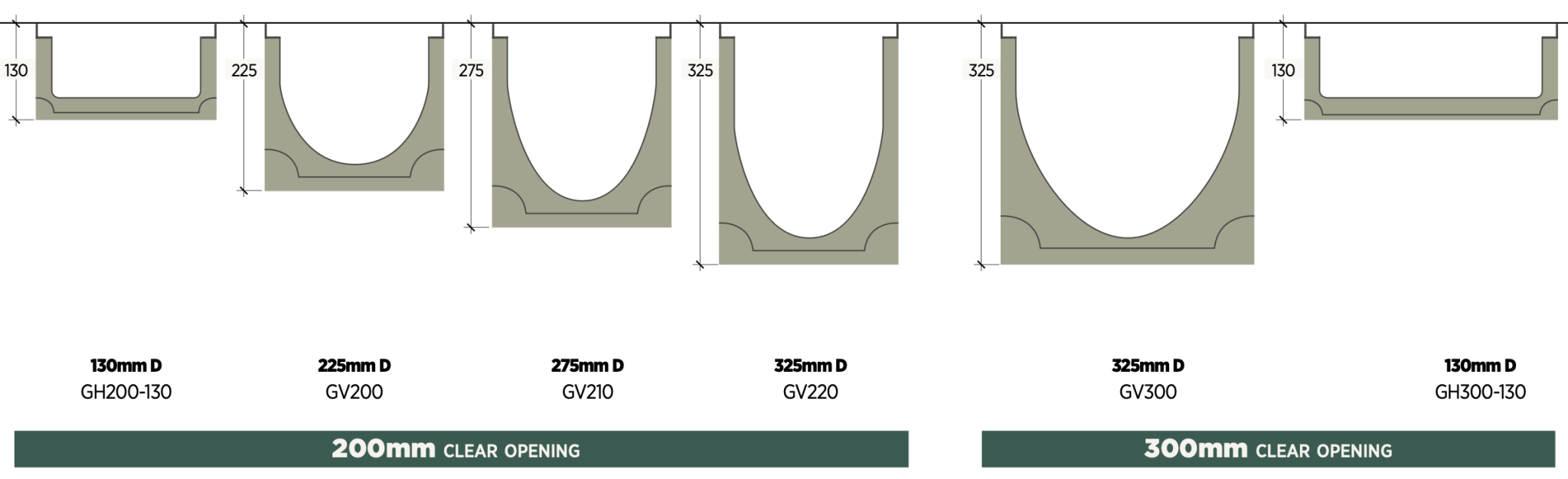

| Polymer Channel Galvanised Steel | 1000mm | 200mm | 325mm | D240 | 33kg | GV200 |
| Polymer Channel Galvanised Steel | 1000mm | 200mm | 275mm | D240 | 42kg | GV210 |
| Polymer Channel Galvanised Steel | 1000mm | 200mm | 325mm | D240 | 52kg | GV220 |
| Polymer Channel Galvanised Steel | 1000mm | 300mm | 325mm | D240 | 47kg | GV300 |
| Polymer Channel Galvanised Steel | 1000mm | 300mm | 320mm | D240 | 34kg | GH300-130 |
