Stainless Steel
Orca’s Stainless Steel grates meet the performance and aesthetic criteria for streetscapes and commercial projects.
Choose 304 Grade to satisfy visual design standards or 316 Grade to perform in marine locations and corrosive environments.
The stainless steel range offers three profiles that feature integrated stainless steel edge rails and our patented Griptech™ anti-slip system. Orca’s heelguard attribute prevents trip hazards, ensuring high heels, bare feet and mobility aids can travel comfortably over the grating surface.
Load rated to Class D, with a P5 slip rating, these grates are available with 100mm, 200mm and 300mm SV channels or in the shallow SH profile for locations with depth restrictions.
Manufactured to Australian quality standards our stainless steel grates work with Orca’s drainage and electrical channels and pits range.
Grates: Stainless Steel
| Description | Suits Drain Range | Class Load | Width | Length | Product Code |
|---|---|---|---|---|---|
| SS304 Griptech Heelguard Grate | 100 Clear Opening | B | 100 | 1000 | G120 |
| SS316 Griptech Heelguard Grate | 100 Clear Opening | B | 100 | 1000 | G122 |
| SS316 Smooth Grate | 100 Clear Opening | B | 100 | 1000 | G123 |
| SS304 Griptech Heelguard Grate | 100 Clear Opening | D | 100 | 1000 | G130 |
| SS304 Griptech Heelguard Grate | 200 Clear Opening | B | 200 | 1000 | G220 |
| SS316 Griptech Electropolished Grate | 200 Clear Opening | B | 200 | 1000 | G222 |
| SS304 Griptech Heelguard Grate | 200 Clear Opening | D | 300 | 1000 | G230 |
| SS304 Griptech Heelguard Grate | 300 Clear Opening | B | 300 | 1000 | G320 |
| SS316 Griptech Heelguard Grate | 300 Clear Opening | B | 300 | 1000 | G322 |
| SS304 Griptech Heelguard Grate | 300 Clear Opening | D | 300 | 1000 | G330 |
Polymer Channels
| Description | Internal L | Internal W | Overall Depth | Class Load | Weight | Product Code |
|---|---|---|---|---|---|---|

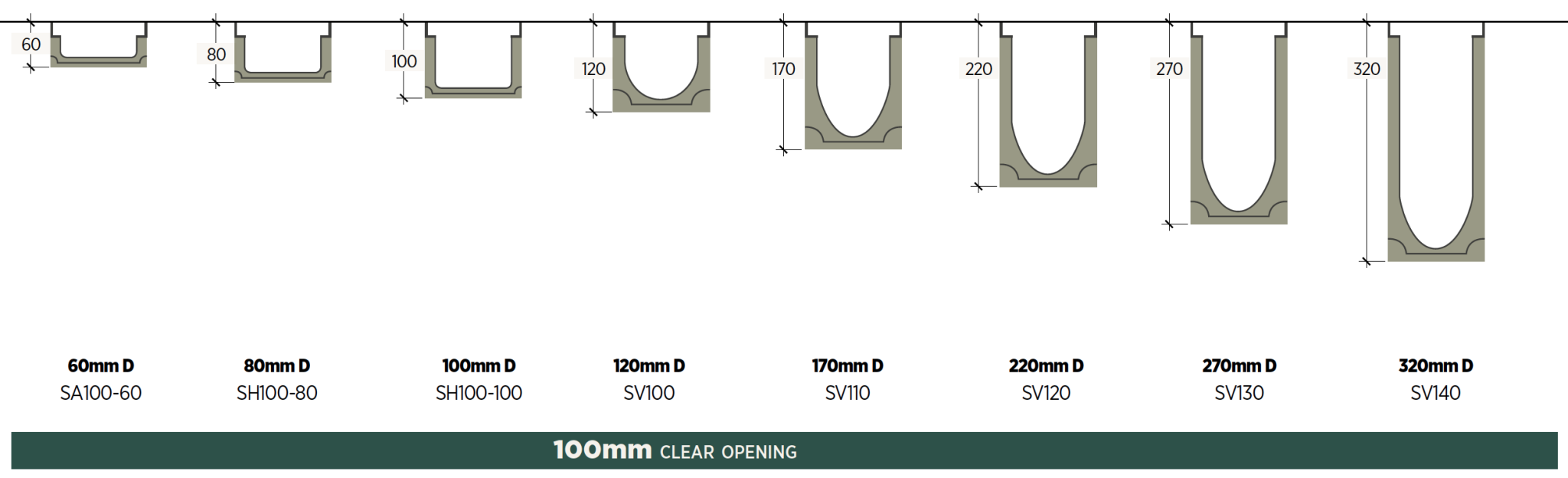

| Polymer Channel Stainless Steel | 1000mm | 100mm | 60mm | D240 | 6.5kg | SH100-60 |
| Polymer Channel Stainless Steel | 1000mm | 100mm | 80mm | D240 | 9kg | SH100-80 |
| Polymer Channel Stainless Steel | 1000mm | 100mm | 100mm | D240 | 12.5gh | SH100-100 |
| Polymer Channel Stainless Steel | 1000mm | 100mm | 1200 | D240 | 13kg | SV100 |
| Polymer Channel Stainless Steel | 1000mm | 100mm | 170mm | D240 | 17kg | SV110 |
| Polymer Channel Stainless Steel | 1000mm | 100mm | 220mm | D240 | 19kg | SV120 |
| Polymer Channel Stainless Steel | 1000mm | 100mm | 270mm | D240 | 21kg | SV130 |
| Polymer Channel Stainless Steel | 1000mm | 100mm | 320mm | D240 | 24kg | SV140 |

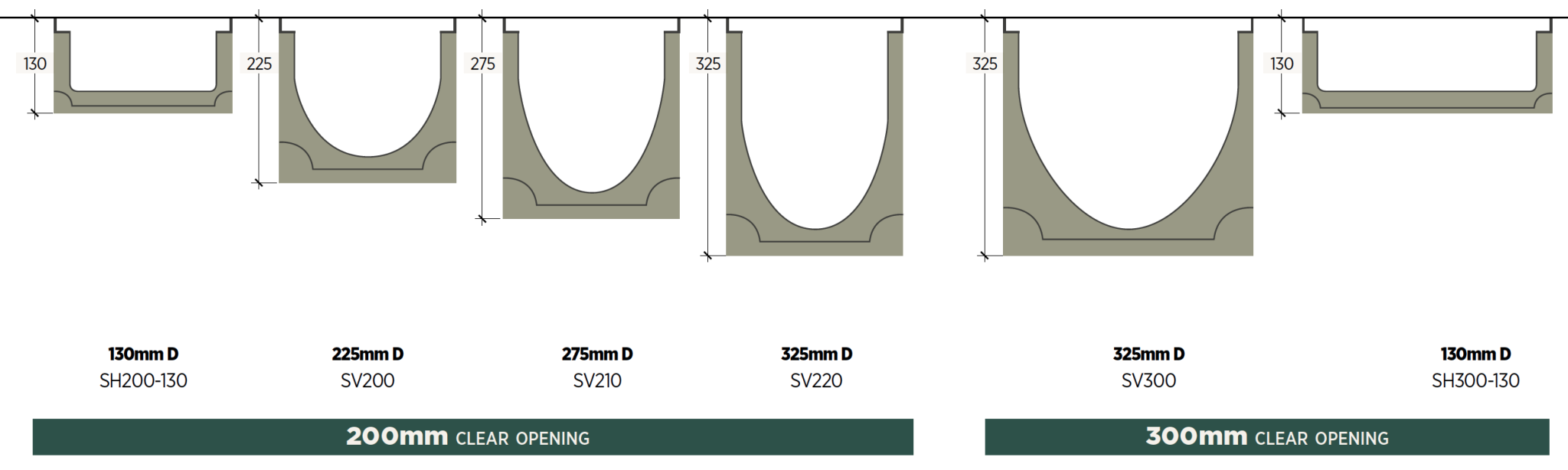

| Polymer Channel Stainless Steel | 1000mm | 100mm | 130mm | D240 | 27kg | SH1200-130 |
| Polymer Channel Stainless Steel | 1000mm | 200mm | 325mm | D240 | 33kg | SV200 |
| Polymer Channel Stainless Steel | 1000mm | 200mm | 275mm | D240 | 42kg | SV210 |
| Polymer Channel Stainless Steel | 1000mm | 200mm | 325mm | D240 | 52kg | SV220 |
| Polymer Channel Stainless Steel | 1000mm | 300mm | 325mm | D240 | 47kg | SV300 |
| Polymer Channel Stainless Steel | 1000mm | 300mm | 320mm | D240 | 34kg | SV300-130 |
