Multi Part Infill Covers (Class E)
The updated 2019 version of the Australian Standard for Access Covers and Grates – AS3996 – notes that Access Covers tested to Class E (400Kn) be installed in freeway and motorway carriageways. Given this change, Mascot Engineering have begun development of a new range of Class E Covers to suit.
At the moment the Class E range consists of 600sq, 900×600 and 900sq – all of which can be put together (locally) as a multipart. Our Class E infill covers range is being added to constantly and a chart of example sizes will be developed and added to this page soon.
In the meantime, please contact the Mascot 4YOU technical team at sales@mascoteng.com.au or 1300 885 295 to discuss your requirements.
Below are details of the single part Class E covers tested to the load ratings specified in AS3996:2019.

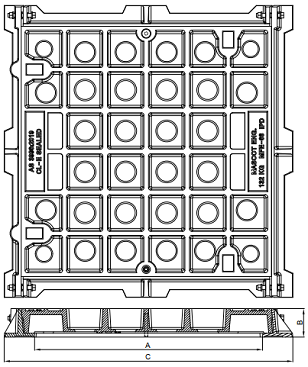

| Clear Opening (A) | Overall Height (B) | Overall Size (C) | Weight | Load Rating | Product Code |
|---|---|---|---|---|---|
| 450x450 | 75 | 637x637 | 70 | Class E | MFE44 |
| 450x600 | 75 | 637x790 | 82 | Class E | MFE46 |
| 600x450 | 75 | 897x1047 | 84 | Class E | MFE64 |
| 600x600 | 75 | 760x770 | 94 | Class E | MFE66 |
| 600x900 | 75 | 790x1095 | 148 | Class E | MFE69 |
| 750x600 | 75 | 942x790 | 119 | Class E | MFE76 |
| 750x750 | 75 | 942x942 | 144 | Class E | MFE77 |
| 900x600 | 75 | 1070x760 | 132 | Class E | MFE96 |
| 900x900 | 75 | 1060x1070 | 182 | Class E | MFE99 |
All dimensions in mm. All weights in kg. All data correct at time of print and may vary.
