Solids Settlement Tanks

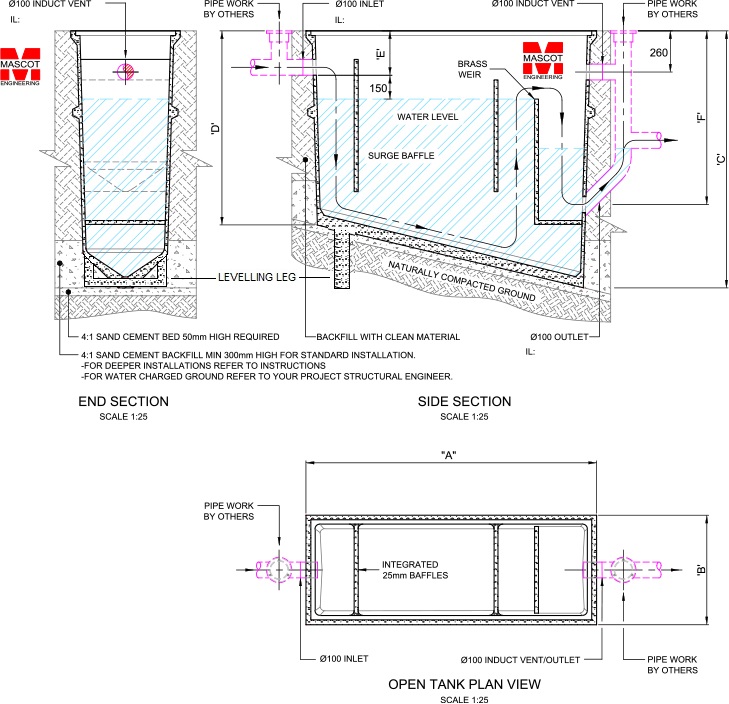

| Product Code | Capacity (L) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|
| SS100 | 1000 | 1830 | 690 | 1620 | 1245 | 280 | 1145 | 250 |
| SS150 | 1500 | 2610 | 870 | 1765 | 1265 | 280 | 1165 | 590 |
| SS200 | 2000 | 2610 | 870 | 2065 | 1565 | 280 | 1465 | 690 |
Notes
- Tested and approved for installations up to 5000mm deep
- 300mm risers available
- Large range of concrete surrounds and gas tight covers to suit all load ratings
- MPa rating for GRC – 60 MPa @ 28 days
- Available extras:
- Step irons
- Support frame and work platforms for above ground installations
- Other pipe sizes available upon request
- Fitted standard with PVC fittings. Other material (HDPE etc) available
- Cover will add to overall depth
- Internally coated with acid resistant tar epoxy paint.
- Confirm with local authority for suitability prior to purchase/install.
- Installation instructions must be followed.
