Cast Iron Trench Grates and Frames
Mascot Engineering iron grating has been part of our range for over 70 years.

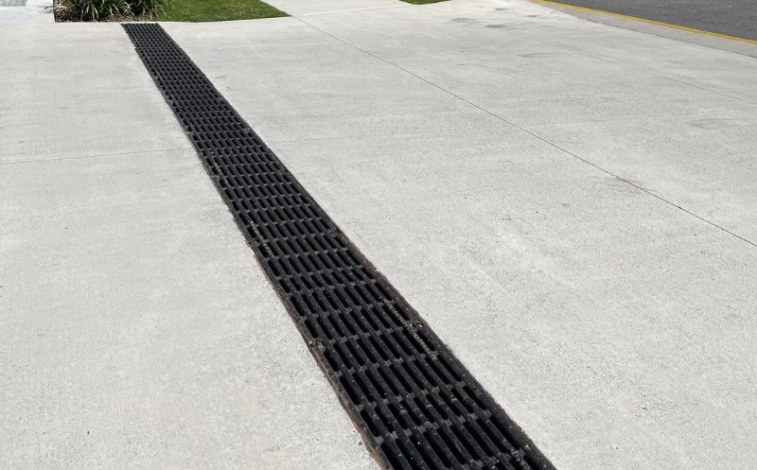

Mascot Engineering’s ductile iron trench grate and frame features an anti-slip surface and is supplied in 500mm lengths. With a longitudinal bar design to maximise water flow as well as being fitted with lock down bolts, this channel grate comes tested to Class D load rating (AS3996:2019) suitable for heavy duty applications.
| Product Code | Internal Opening (mm) | Overall Width (mm) | Length (mm) | Frame Depth (mm) | Weight (Kg) |
|---|---|---|---|---|---|
| DD1LHFG | 100 | 200 | 1000 | 45 | 29 |
| DD2LHFG | 150 | 250 | 1000 | 45 | 30 |
| DD3LHFG | 200 | 300 | 1000 | 45 | 40 |
| DD4LHFG | 250 | 350 | 1000 | 45 | 47 |
Trench Grate Removal
Mascot Engineering’s Trench Grating can be easily removed with standard lifting devices such as hooks aided by trolleys for heavier grates.
Our Technical Support area contains some very useful information on using our products, including videos on how to remove our Trench Grating.
