Magnum 300

Class E & Class G Drainage Solution

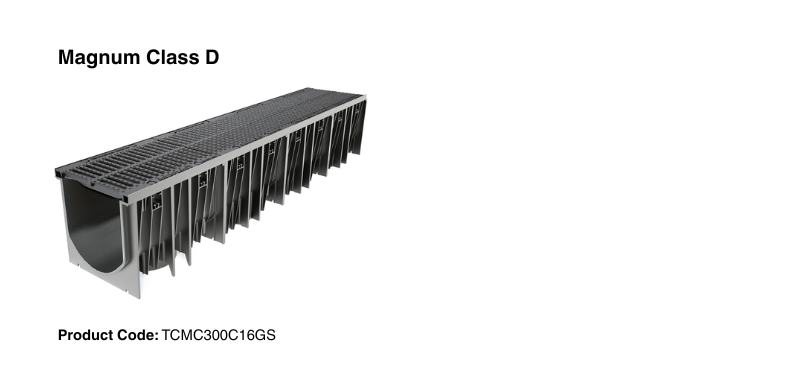

The Magnum 300 is the largest and heaviest duty linear drainage channel and grate system in our range.

Designed and engineered for infrastructure, the Magnum 300 Class E and Class G systems are ideal for roads, ports, airports and heavy industrial applications.

Whilst a traditional grate and frame is generally used, the Magnum 300 provides an alternative for clients seeking a channel to assist with installation.  The Magnum channel is manufactured from 100% recycled high-density polyethylene with a protective iron edge rail shielding the HDPE edge, the Magnum 300 product is built for infrastructure.

Boltdown

Unauthorised access is prevented with the inclusion of a boltdown facility – eight bolts per metre.

Modular & Pre-Assembled

Magnum 300 is fitted with a tongue and groove ends allowing for easy and simple joining of the one 500mm channels to create the length you need without fussy fixings and fittings.

Each preassembled 500mm length of Magnum channel has a Ductile Iron grate and four boltdown facilities.

Installing extra heavy duty channel and grate products can be difficult, the Magnum 300 is in 500mm pre-assembled sections with the Class E weighing 25kg and the Class G weighing 34kg.

100% Recycled Materials

Sourced from industrial scraps and products at the end of their operational life, the Magnum Channel body is crafted from 100% recycled high-density polyethylene (HDPE).  More information on the sustainable and responsible manufacturing process and how Technodrain contributes to a circular economy can be found here.

UV Protection

UV filters are added to enhance the finished products resistance to sunlight and environmental factors to extend its lifespan in demanding conditions.

Non-Rocking

To prevent grates rocking, the protective edge frame fitted to the Magnum range provide a level surface that when paired with the boltdown facility reduces the chance of grates rocking whilst subject to traffic.

Hydraulic Flow & Knock-Outs

Magnum ductile iron Class E and particularly the Class G grates are designed to maximise efficiency, to assist with high flow rates. The internal channel of the Magnum 300 is smooth and rounded (self cleaning) whilst each channel is fitted with pipe outlet points in both the sides and base.

Accessories

End caps & in-line pits available for the Magnum 300.

Technical Specifications – Magnum 300 Class E

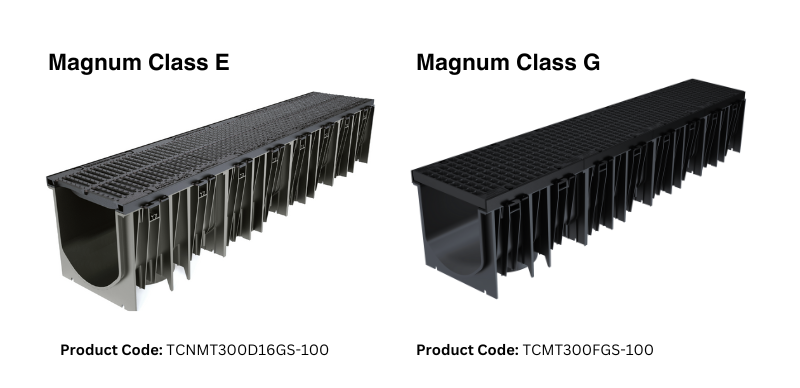

TCNMT300D16GS-100

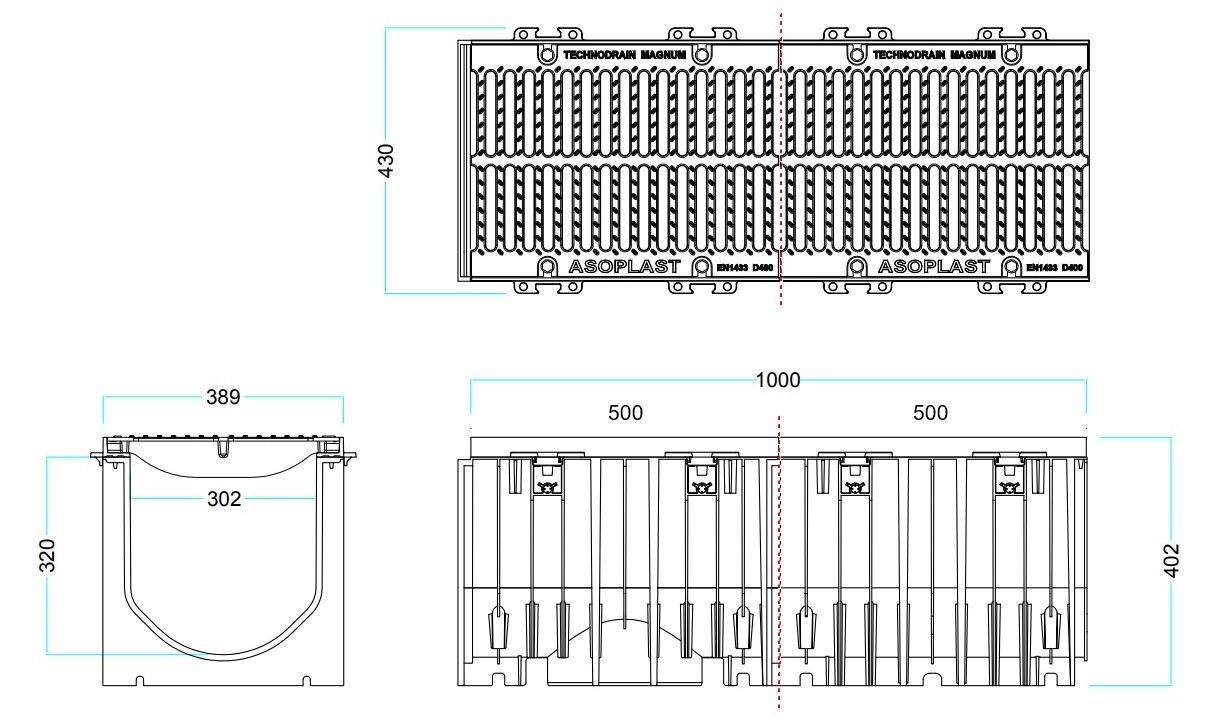

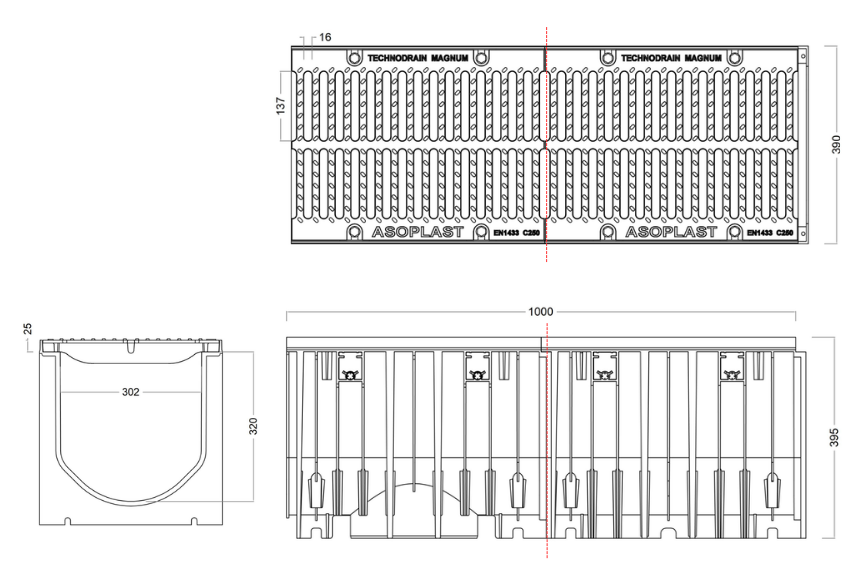

Note: Channel drawing indicates two x 500mm length channel assembly to form 1000mm length.



Magnum 300 Class E Channel Technical Data

Length (mm)Overall Width (mm)Internal Width (mm)Overall Depth (mm)Internal Depth (mm)
500389302402320

Magnum 300 Class E Ductile Iron Grate Technical Data

Length (mm)Overall Width (mm)Overall Depth (mm)Slot Opening Size (mm)Bolts per metre
50037625/65164

Total weight of assembled Magnum 300 Class E Iron Grate (500mm of channel and one iron grates) is 24.4kg.

Technical Specifications – Magnum 300 Class G

TCMT300FGS-100

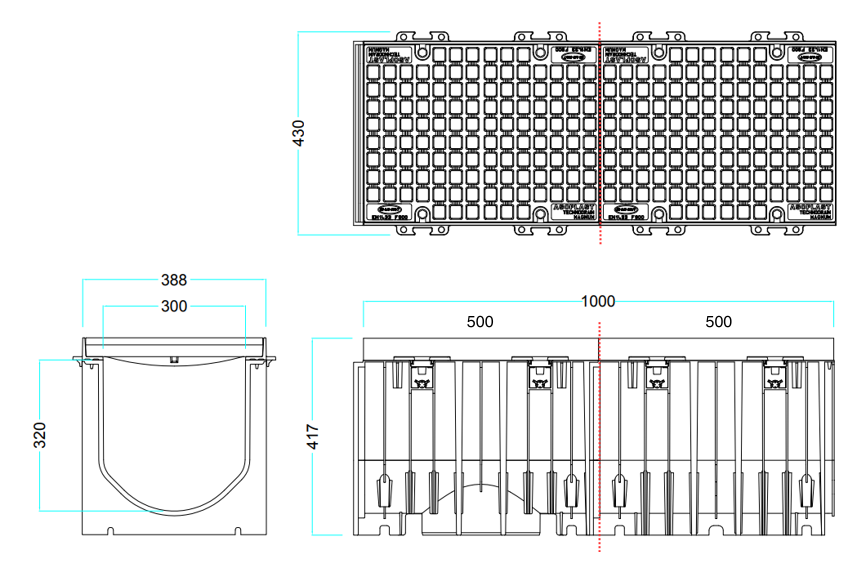

Note: Channel drawing indicates two x 500mm length channel assembly to form 1000mm length.



Magnum 300 Class G Channel Technical Data

Length (mm)Overall Width (mm)Internal Width (mm)Overall Depth (mm)Internal Depth (mm)
500388302417320

Magnum 300 Class G Ductile Iron Grate Technical Data

Length (mm)Overall Width (mm)Overall Depth (mm)Slot Opening Size (mm)Bolts per metre
50037640/6023.5x274

Total weight of assembled Magnum 300 Class G Iron Grate (500mm of channel and one iron grates) is 33.5kg.



Standards & Compliance

Magnum is part of the Technodrain range of products manufactured by Asoplast in Italy and brought to Australia by Mascot Engineering.  As with all European products, they are tested to the load ratings found in EN1433 (their version of AS3996).  This product is independently tested to load rating D400 (400kN – AS3996 Class E is 240kN) and F900 (900kN – AS3996 Class G is 900kN) and copies of test certificates as well as declaration of performance certificates are available.

Click here to learn more about standards and compliance.

Technodrain is proudly distributed by Mascot Engineering, for further information on the Technodrain range, contact our sales team on 1300 885 295 or sales@mascoteng.com.au
