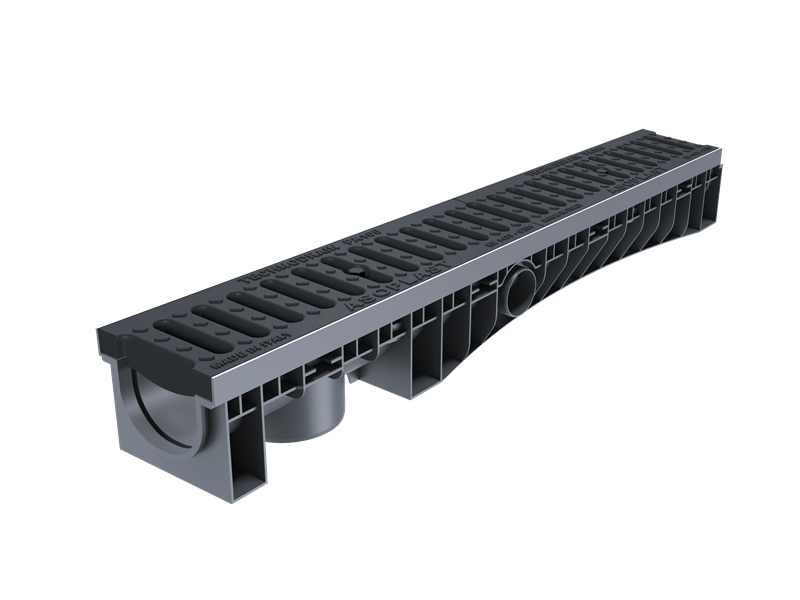

Evo 100 Polyamide

Introducing the Polyamide Class D 100mm Grate & Evo Channel

CODE: TCE100SC18PA



Strength, Safety & Corrosion Resistance Redefined

Introducing the latest in drainage innovation from Technodrain – a Polyamide composite grate, engineered to set a new benchmark in drainage performance.

Load tested to 250kN (EN124’s C250 – equivalent to AS3996:2019 Class D), this grate and channel delivers stainless-steel-level durability without the associated cost or maintenance challenges.

Combining high strength, low weight, and exceptional corrosion resistance, it offers a long-term solution for environments where traditional metal grates fail or degrade.

The Polyamide Advantage

Unlike existing composite or FRP (fibreglass reinforced plastic) products, Polyamide is a high-performance engineered polymer (a synthetic thermoplastic) known for its strength and resistance to wear and tear. It delivers comparable mechanical strength and load capacity to ductile iron, yet is far lighter, easier to handle, and immune to rust.

Key benefits include:

• High strength-to-weight ratio – engineered for heavy-duty performance while simplifying transport and installation.
• Corrosion and chemical resistance – impervious to salt, chlorine, and harsh cleaning agents, ideal for coastal or chemically exposed sites.
• Anti-slip surface – ensures safety and stability underfoot, even when wet.
• UV and temperature stability – maintains appearance and strength under long-term outdoor exposure.
• Boltdown facility with corrosion resistant Stainless Steel bolts
• HDPE Channel with integrated edge rail that is modular and pre-assembled with pre-formed outlets in the base and side.
• Stainless steel performance, composite price – offering a significant cost saving without compromising on quality or aesthetics.

Perfect for Harsh Environments

Designed for the same demanding conditions where stainless steel is typically specified… coastal locations, marinas, beachfront promenades, swimming pools, food and beverage processing areas, chemical and industrial facilities — the Technodrain Evo 100 with Polyamide grate provides equal reliability with significantly reduced cost.

Part of the Technodrain Range from Mascot Engineering

The Polyamide Class D grate is part of the trusted Technodrain range, paired with the Evo100 – a 100mm wide HDPE channel featuring stainless steel boltdown fixings for secure, long-lasting installation.Backed by Technodrain’s global reputation for innovation and performance, the Evo100 continues a legacy of durable, high-quality drainage systems trusted by engineers, architects, and contractors worldwide.

Committed to sustainable and responsible manufacturing, Technodrain ensures every product is developed with minimal environmental impact, optimising materials for longevity, recyclability, and reduced waste.
With decades of proven success in delivering advanced drainage solutions, Technodrain stands at the forefront of material innovation, reliability, and environmental responsibility.

Technodrain – redefining drainage with Polyamide technology.

Available exclusively from Mascot Engineering

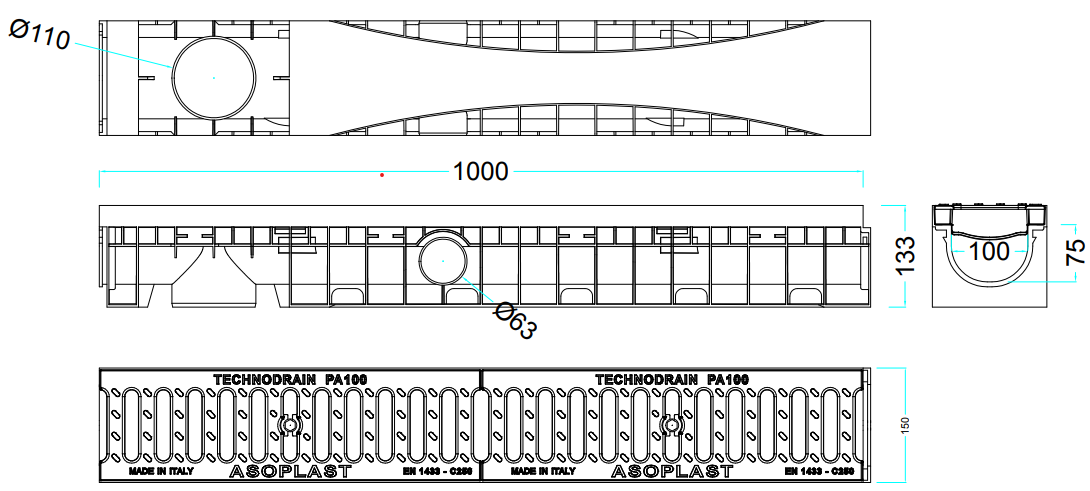

Channel

Polyamide Grate

Total weight of assembled Evo 100 Class D Polyamide (1m of channel and 2 x 500mm grate) is 4.8kg
